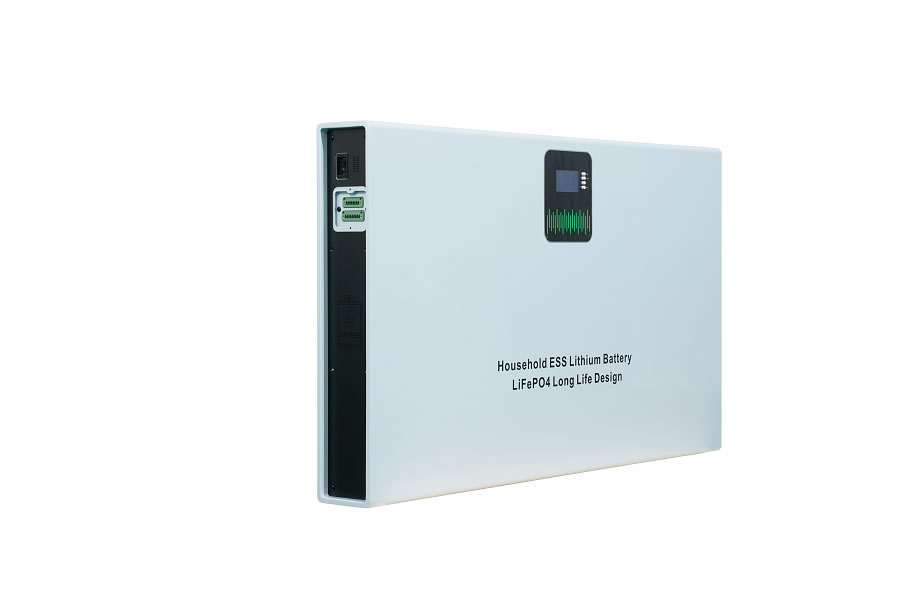

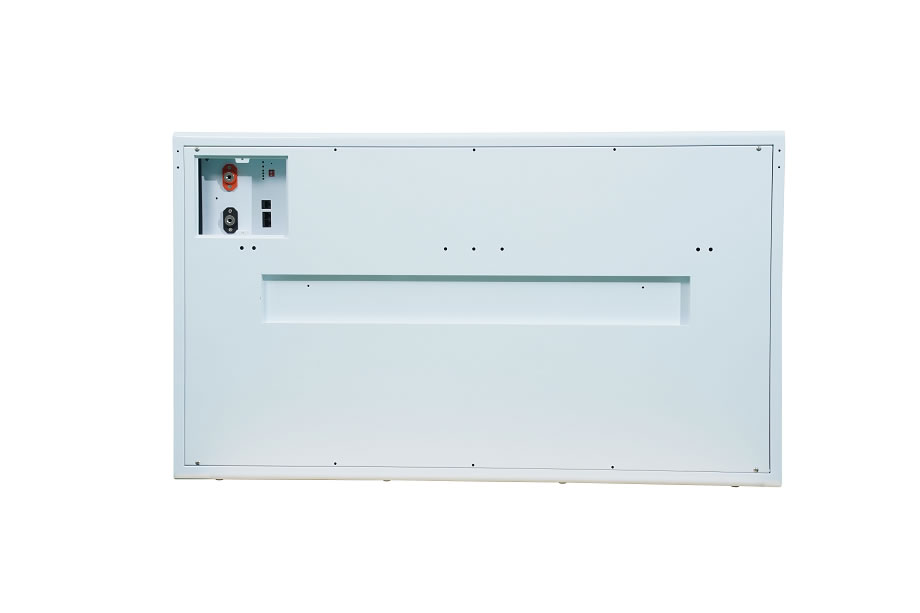

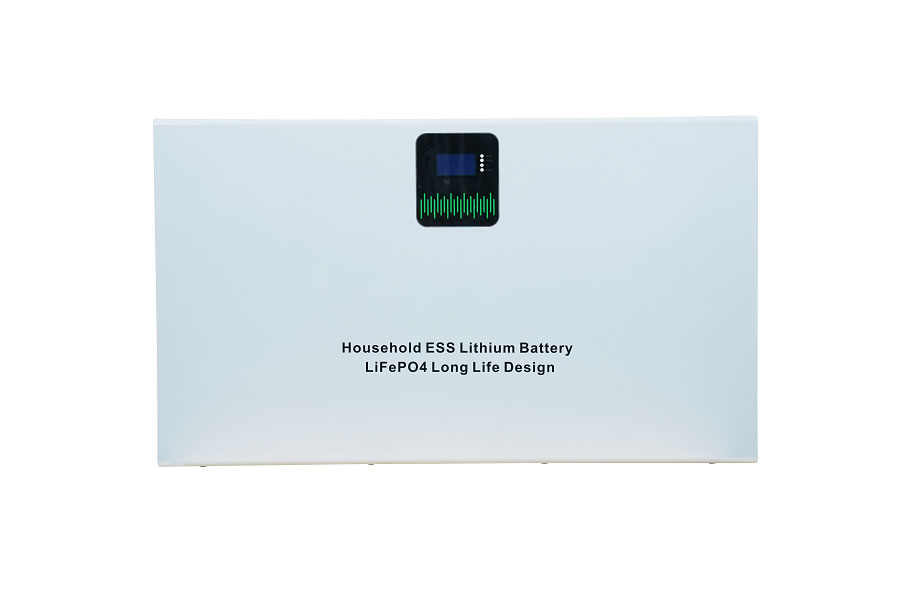

YESS-C-51.2V130Ah

LiFePO4 battery, more stable and safe .
Intelligent BMS equipped inside to maintain
the battery always work at best condition .
Max. charge and discharge current as 150A
which is specially designed for solar energy .
Excellent standby self-consumption as low as
4mA .

Automatically output cut off after 30days no
charge and discharge to ensure security ,
also can cut off output by manual operation

YESS-C-51.2V130Ah

Nominal property: Nominal capacity

138Ah; Nominal voltage

51.2/V

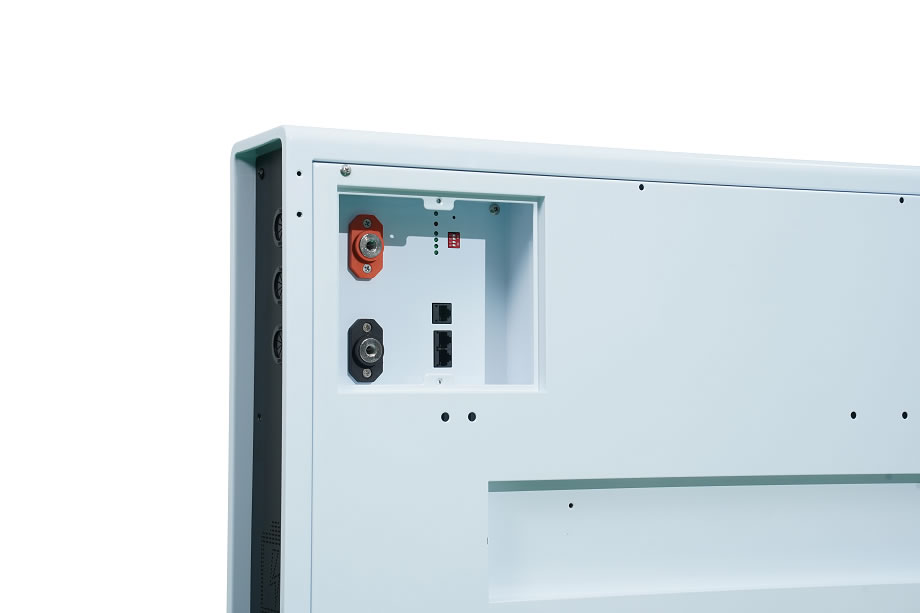

Mechanical properties: Terminal blocks

M8; Size L * W * H

1135*679*110/mm; Mass (approximately)

57kg

Electrical characteristics: Maximum continuous charging current

69A; Maximum instantaneous discharge current

150A 1Sec; Maximum continuous discharge current

100A; Float charging voltage

56V; Voltage usage range

44.8V to 58.4V

Operating conditions: Waterproof grade

IP20; safety standards

UN38.3.MSDS; Storage cycle

6 months at 25°C; Storage temperature

0 to 30°C; working temperature

Discharge -10°C to 50 °C Charge 0°C to 50°C; Cycle life (+25 ℃, 0.2C, 100% discharge depth)

>6000 Cycles
