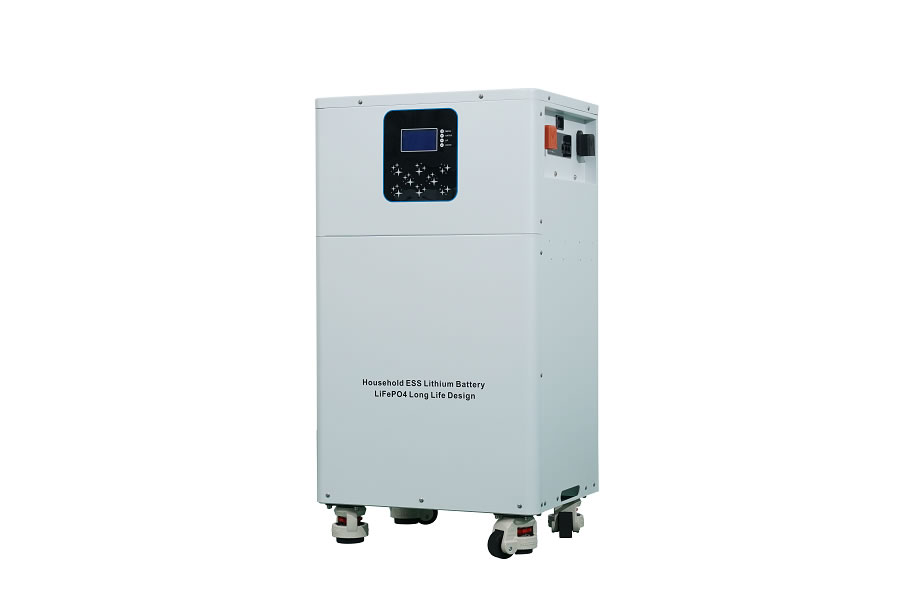

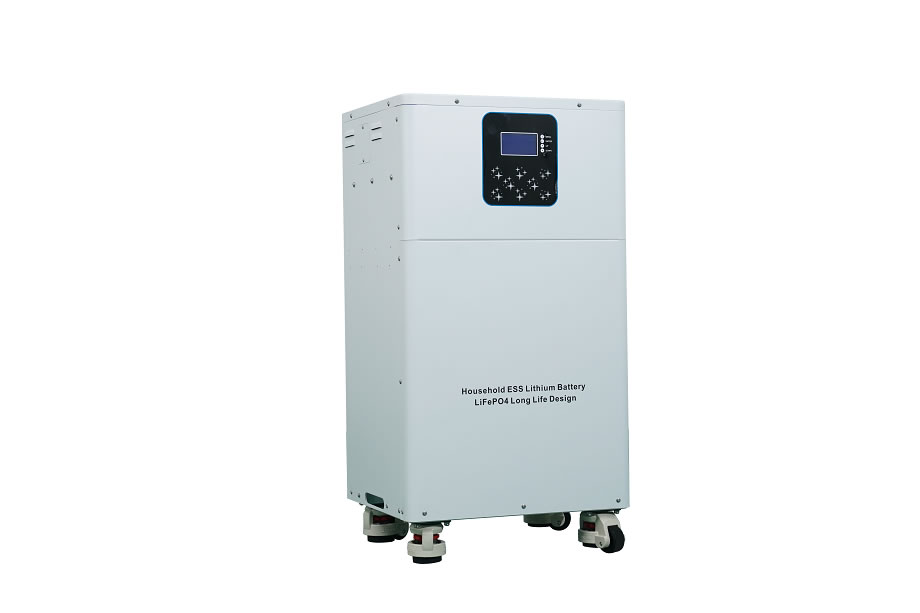

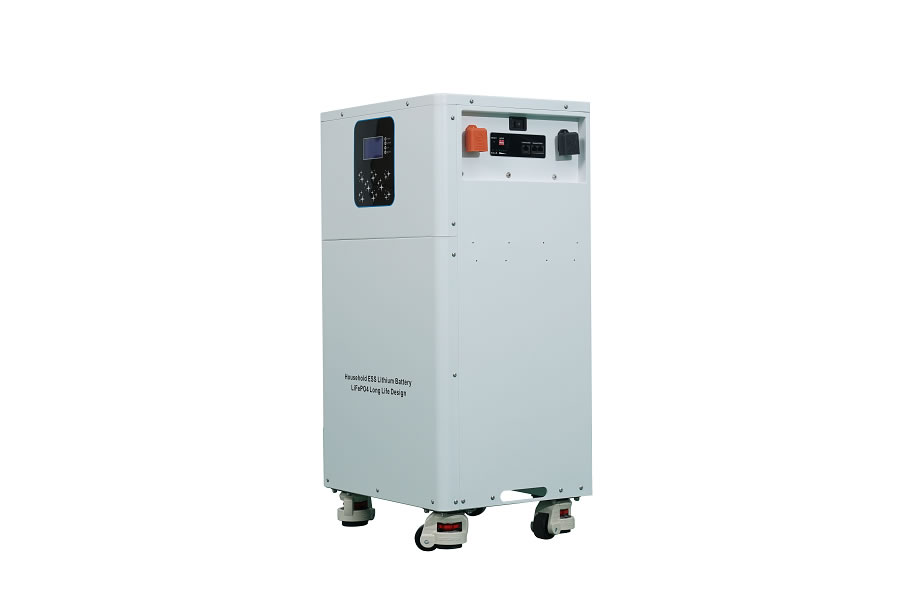

YESS-A-51.2V200Ah-energy storage battery,solar battery ,lifepo4 battery,home energy battery ,home storage battery

YESS-A-51.2V200Ah

LiFePO4 battery, more stable and safe .
Intelligent BMS equipped inside to maintain
the battery always work at best condition .
Max. charge and discharge current as 150A
which is specially designed for solar energy .
Excellent standby self-consumption as low as
4mA .

Automatically output cut off after 30days no
charge and discharge to ensure security ,
also can cut off output by manual operation .
Within solar inverter Modbus-485 and CAN
communication protocol .

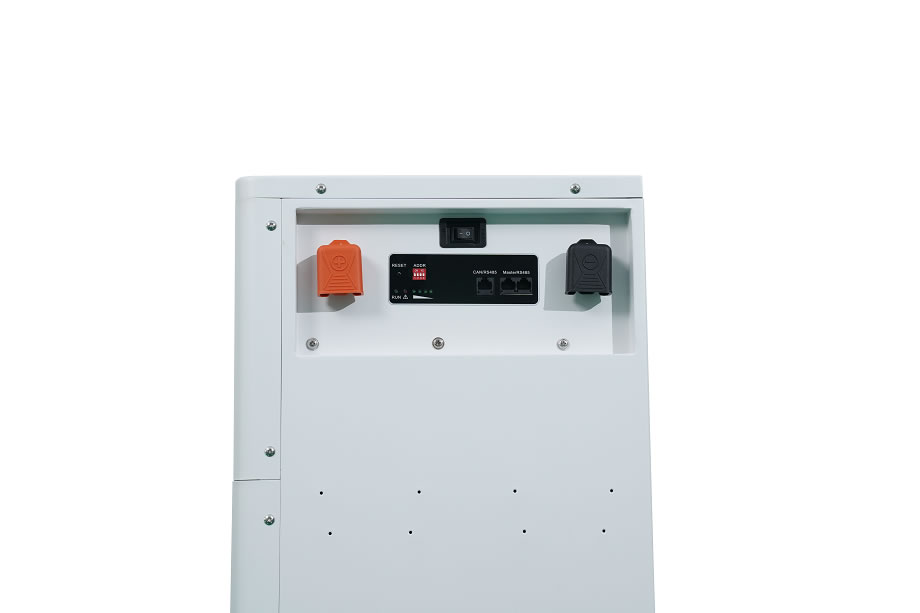

Mechanical properties: Terminal blocks

M8; Size L * W * H

473*356**770/mm; Mass (approximately)

133kg

Electrical characteristics: Maximum continuous charging current

100A; Maximum instantaneous discharge current

200A 30Sec; Maximum continuous discharge current

150A; Float charging voltage

56V; Voltage usage range

44.8V to 58.4V

Operating conditions: Waterproof grade

IP20; safety standards

UN38.3.MSDS; Storage cycle

6 months at 25℃; Storage temperature

0 to 30℃; working temperature

Discharge -l0℃ to 50℃ Charge0℃ to 50℃; Cycle life (+25 ℃, 0.2C, 100% discharge depth)

>3000 Cycles
